1980 MACGREGOR 36 CATAMARAN
GIVEN A NEW LIFE AS A TALL RIG IN THE NEW MILLENNIUM
After selling our 35 foot racing monohull in 2000 we decided it would be fun to experiment with a MacGregor 36 Catamaran, and what a ride it was! We had owned a Mac 36 many years before and felt we never had the time to fully explore it's performance potential, but now was the time. Our goal was to take this hard core performance boat and turn it into a civilized and easy to handle cruising boat without giving up any performance. Finding the right boat to start with was our first task. After searching for quite a while we found a great project boat in San Diego. This was a fairly complete 1980 M36 that was very close to stock original condition, tired but not cut up and modified.
After leaving San Diego, we made a quick stop at the MacGregor factory to visit with Roger and make sure the trailer was up to the trip to Seattle. On Monday morning She was quite the attention getter at the factory, as most of the workers had never seen a 36 Cat, but could tell it must be a Macgregor. While trailering our find home behind our Dodge Dakota we were quite a sight, as the boat looks really long on a trailer, even though it is very light and was an easy tow.
Once home, we put the boat inside our shop, lifted the hulls off of the trailer and began to tackle the extensive "to do" list. The first step was to update her from the 1980 Blue and White paint scheme to make her look more like a modern Mac with Black trim and window accents, we also added Grey non skid on the deck. While we were working on the basics of refurbishing the hulls, redesigning the deck hardware layout and repainting the bottom, new interior cushions were being made and the fabrication work was under way for the parts to turn her into a tall rig. After referring back to Roger's original notes for the few boats he built as tall rigs (for himself) we manufactured all of the parts required for the conversion, including a custom 8' extension section for the mast. Also part of this phase of the project was the addition of a second engine mount on the Port transom to allow the installation of twin Suzuki 25HP outboards to provide the cruising speed we were after.
Once the painting was completed the boat was launched and motored across Lake Union with the two hulls still bolted together with the shipping tubes. The boat is stable even when only 8' wide and I couldn't resist the temptation to give her a little throttle along the way, it was a little startling how quickly she jumped up to 15MPH without much throttle! Back then we didn't have the 28,000# crane we have now, so we proved that the several hundred pound (now 52' tall) mast can indeed be raised and put into place without a crane, but it sure is not as easy as the new MacGregor boats!

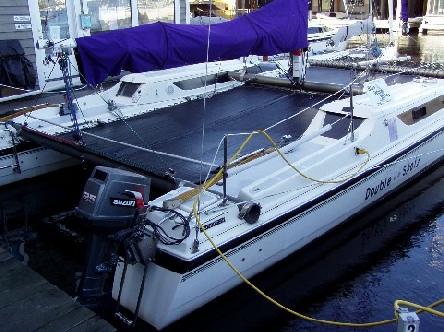

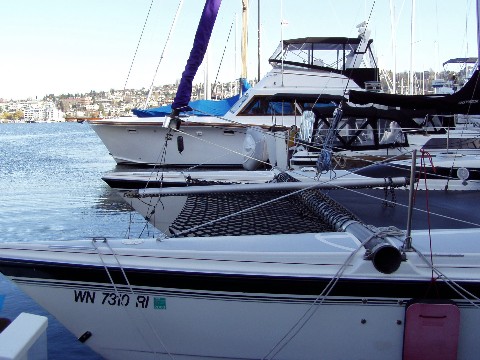

The picture above shows the new paint, trim stripe, trampolines, roller furling, and retractable bow sprit for the oversize spinnaker.

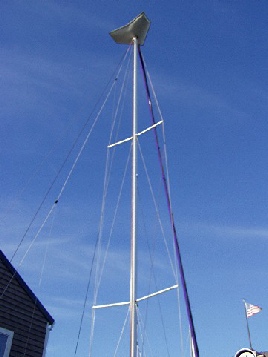

Here is the new double spreader rig up with the Dutchman system for the mainsail and the masthead float. The float is to prevent the boat from rolling turtle if you sail it over and is about 6' wide, 4' long and a foot thick!
Once in the water and rigged we finished the final commissioning of the boat, including all new sailing and navigation instruments, high end Clarion stereo, satellite television, cabin heat and refrigeration. The new sail inventory included a Spectra Cruising Laminate mainsail with full battens and a Dutchman flaking system, a roller furling Spectra Cruising Laminate non overlapping jib, and a huge roller furling asymmetrical spinnaker flown from a retractable bowsprit. This sailplan proved to be both faster and easier to handle than the stock rig with an overlapping Genoa, just what we were after!

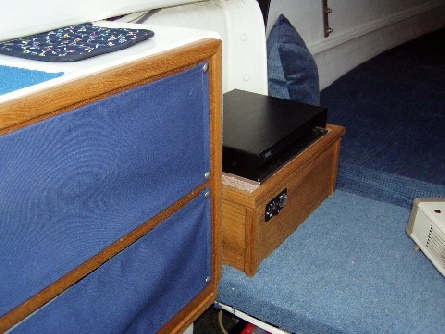

The interior was nicely appointed, with teak trim, a fully redesigned galley, cabin heat and refrigeration, all packed into a 38" wide hull.
The 36 can be a cold wet ride some days, but the huge trampolines make a great place to party or relax on a nice day
The final result of this project was very much what we had hoped for, although the narrow hulls made for very cramped cruising. The "main" berth was only 38" wide and made for snug sleeping, even though it was 11' long!
The performance of the boat was as spectacular as we could have hoped for, easily sailing at over 15kts and at times over 20. Under power the boat could make 24 MPH in calm water, what more could you ask for?
